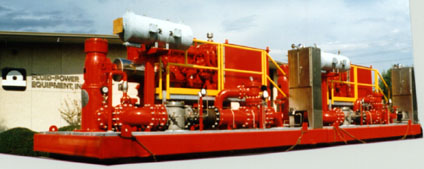

Engine Driven Vertical Turbine Firewater Pump System

Conditions:
Area Class:
Driver:
Starting:
Package Size:
Weight:
2100 GPM @ 430¹ (477 M3/H @ 131M)
Non-Hazardous
292 HP (217KW)
Automatic Pneumatic
217" X 108" X 95" (5511mm X 2743mm X 2413mm)
22,300 Pounds (10,156 Kilograms)

Features

Pump Discharge System Designed, Supplied, Installed, Tested
Pump Relief Valve System Designed, Supplied, Installed, Tested
Pump Flow Measuring System Designed, Supplied, Installed, Tested
Exhaust System Designed, Supplied, Installed, Tested
Skid Grating, Ladders and Platform

Other available pump materials include- Aluminum Bronze, Nickel Aluminum Bronze, 316 SS, Alloy 20, Duplex SS, and others

UL Listed Pumps are available in standard materials up to 5000 GPM (1136 M3/H) in increments to 500 GPM (113.6 M3/H).

Non Listed sizes and materials are available as specified.
