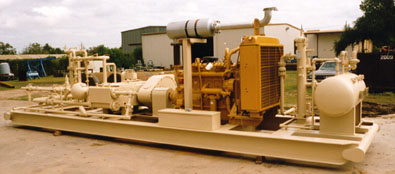

Engine Driven Horizontal Hydraulic Power Pump

Conditions:
Area Class:
Driver:
Package Size:

Weight:

2800 BPD @ 4000 PSIG (18.6 M3/H @ 281 Kg/Cm2)
Hazardous Zone 2
200 HP (149 KW)
216" X 84" X 93"
(5486mm X 2134mm X 2362mm)
18,000 Pounds (8,165 Kilograms)

Features

Engine: CSA Approved
Pump: Provides Pressure to Submersible Pump
Gearbox: Single Reduction Parallel Shaft
Assembly: Pulsation Dampener
Dual Cyclone Power Fluid Cleaning Cyclones
Conditioning System
Engine Exhaust System Installed
Vessel ASME VIII
ANSI B31.3 Piping with 100% Radiography
Custom Epoxy Coating System Applied
